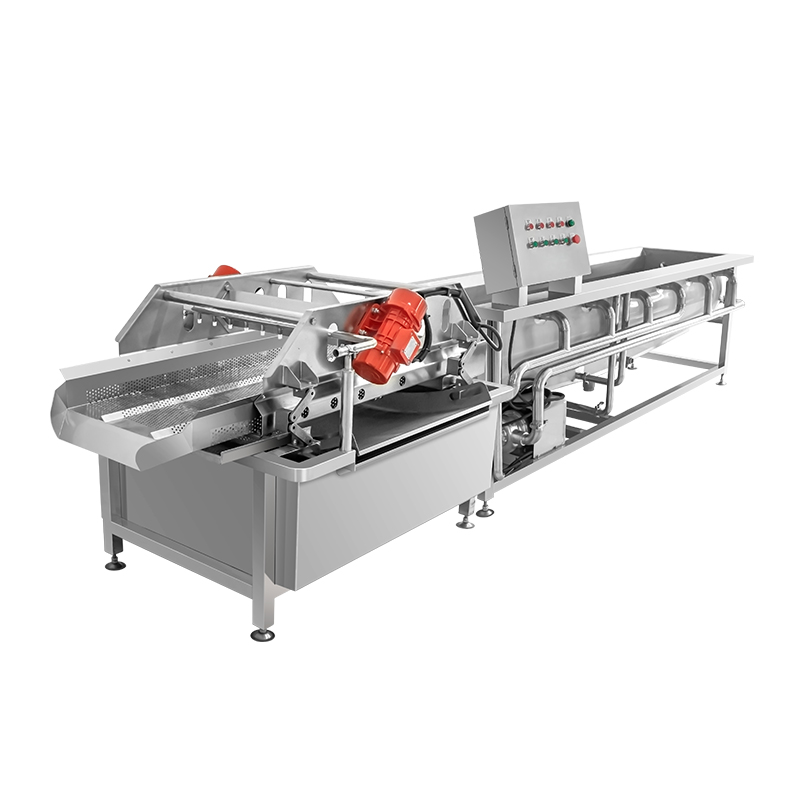

Vortex Vibrating Vegetable Washing Machine KN-406
The KN-406 Vortex Vibrating Vegetable Washing Machine is a high-efficiency vegetable and fruit washing solution designed for continuous cleaning of leafy vegetables, root vegetables, fruits, and fresh produce. Combining vortex water flow, bubble washing, and vibration conveying technology, the machine effectively removes dirt, sand, insects, and pesticide residues while minimizing product damage. Built with food-grade SUS304 stainless steel, the KN-406 is ideal for central kitchens, fresh-cut vegetable processing plants, food factories, and commercial agricultural processing lines.
Tell us your vegetable type, target cut size and required capacity — KONEX will recommend the right cutting solution for your production line.
The KN-406 Vortex Vibrating Vegetable Washing Machine is engineered for gentle yet highly effective washing of vegetables and fruits in continuous production environments. Utilizing a combination of vortex water circulation and vibrating conveying technology, the machine creates a dynamic washing process that thoroughly removes soil, impurities, floating debris, and pesticide residues while preserving the natural appearance and texture of delicate products.
Unlike conventional washing systems, the vibrating conveyor automatically transfers cleaned products to the discharge section, reducing manual handling and improving production efficiency. An optional ozone sterilization system further enhances food safety by reducing microbial contamination and extending product freshness.
Manufactured from food-grade SUS304 stainless steel, the KN-406 offers excellent corrosion resistance, hygienic performance, and easy daily cleaning, making it suitable for demanding food processing environments.
| Item | Specification |
|---|---|
| Model | KN-406 |
| Machine Type | Vortex Vibrating Vegetable Washing Machine |
| Capacity | 1000–1500 kg/h |
| Voltage | 380V |
| Power | 3.8 kW |
| Machine Dimensions | 4100 × 1200 × 1350 mm |
| Material | Food-Grade SUS304 Stainless Steel |
| Washing System | Vortex Water Flow + Bubble Washing + Vibrating Conveyor |
| Optional Configuration | Ozone Sterilization System |
Vortex & Vibrating Washing Technology
Combines vortex water flow and vibration conveying to achieve efficient and uniform cleaning.
Gentle Product Handling
Hydrodynamic washing minimizes mechanical damage to leafy vegetables and delicate fruits.
Efficient Contaminant Removal
Effectively removes dirt, sand, insects, floating debris, and pesticide residues.
Continuous Automatic Operation
Integrated vibrating conveyor automatically transfers products after washing for improved production efficiency.
Optional Ozone Sterilization
Optional ozone system enhances food safety by reducing bacteria and pesticide residues.
Food-Grade SUS304 Construction
Entire machine is manufactured from SUS304 stainless steel for hygienic operation, corrosion resistance, and long service life.
Easy Cleaning & Maintenance
Open structure allows convenient cleaning and routine maintenance.
Machine Advantages
Gentle Yet Thorough Cleaning
Maintains product quality while achieving excellent washing performance.
Increased Productivity
Continuous operation reduces labor requirements and improves processing efficiency.
Improved Food Safety
Multiple washing technologies help reduce contaminants and improve hygiene.
Low Maintenance
Durable stainless steel construction ensures reliable long-term operation.
Suitable for Production Lines
Can operate independently or be integrated into complete vegetable processing lines.
Suitable Materials
- Leafy Vegetables
- Lettuce
- Spinach
- Chinese Cabbage
- Cabbage
- Celery
- Bok Choy
- Herbs
- Root Vegetables
- Potatoes
- Carrots
- Radishes
- Ginger
- Fruits
- Apples
- Cucumbers
- Bell Peppers
- Tomatoes
Processing Operations
- Vegetable Washing
- Fruit Washing
- Bubble Cleaning
- Vortex Cleaning
- Dirt Removal
- Sand Removal
- Insect Removal
- Pesticide Residue Reduction
- Vibrating Dewatering
- Continuous Conveying
Applications
Ideal for:
- Fresh-Cut Vegetable Processing Plants
- Central Kitchens
- Food Processing Factories
- Catering Companies
- Vegetable Packing Facilities
- Agricultural Product Processing Centers
- Supermarkets
- Hotels
- Restaurants
- Food Distribution Centers
- Ozone Sterilization System
- Customized Voltage
- Water Filtration System
- Automatic Water Replenishment
- Variable Speed Control
- Production Line Integration
- Stainless Steel Inspection Conveyor
Typical Processing Solutions
Leafy Vegetable Processing
Leafy Vegetables → KN-406 Washing → Dewatering → Cutting → Packaging
Root Vegetable Processing
Potatoes / Carrots → KN-406 Washing → Peeling → Cutting → Packaging
Fresh-Cut Vegetable Line
Raw Vegetables → KN-406 Washing → Inspection → Cutting → Drying → Packaging
Processing Effect / Finished Cut Samples
Video
FAQ
1. What products can the KN-406 wash?
The KN-406 is suitable for leafy vegetables, root vegetables, fruits, herbs, and other fresh agricultural products. Does the machine dama
2. Can the machine remove pesticide residues?
Yes. The washing system effectively removes dirt and surface pesticide residues, and an optional ozone sterilization system further improves cleaning performance.
3. Can the KN-406 be integrated into a production line?
Yes. It is designed for standalone operation or integration into complete vegetable processing lines.
