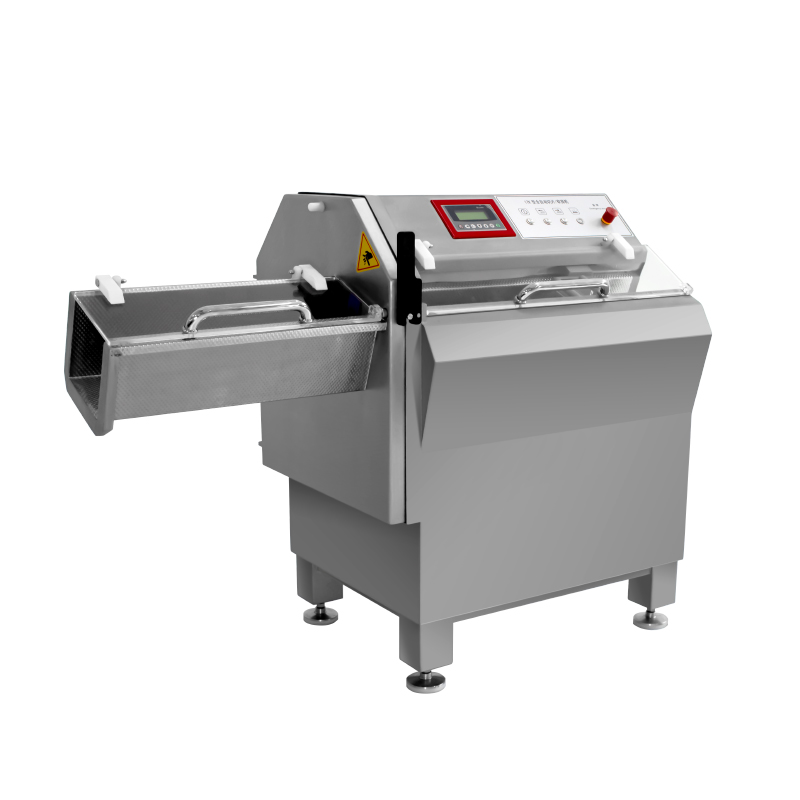

Industrial Frozen Meat Portion Slicer KN-804D-17K
The KN-804D-17K Industrial Frozen Meat Portion Slicer is a high-precision cutting solution designed for frozen meat, fish, cheese, bacon, sausages, and other food products. Equipped with an intelligent feeding system and adjustable cutting thickness from 1–32 mm, it delivers accurate slicing and portion cutting for industrial meat processing, central kitchens, and food manufacturing facilities.
Tell us your vegetable type, target cut size and required capacity — KONEX will recommend the right cutting solution for your production line.
The KN-804D-17K Industrial Frozen Meat Portion Slicer is a precision slicing and portioning machine developed for high-quality processing of frozen and chilled food products. Designed to slice frozen meat, fish fillets, cheese, bacon, sausages, and similar products, it produces clean, consistent slices with adjustable thickness while maintaining excellent product appearance.
By replacing the standard blade with an optional serrated blade, the machine can also process certain bone-in frozen meat portions and segmented products, expanding its application range for industrial food production.
Featuring an intelligent feeding mechanism, direct-drive transmission, and food-grade stainless steel construction, the KN-804D-17K ensures reliable performance, high efficiency, and hygienic operation. Industrial frozen meat slicers commonly support adjustable slice thickness and interchangeable blade configurations to accommodate different products.
| Item | Specification |
|---|---|
| Model | KN-804D-17K |
| Machine Type | Industrial Frozen Meat Portion Slicer |
| Maximum Product Size | 170 × 170 × 640 mm |
| Cutting Thickness | 1–32 mm |
| Voltage | 380V |
| Power | 3.0 kW |
| Machine Dimensions | 1700 × 800 × 1230 mm |
Precision Frozen Meat Slicing
Produces smooth, uniform slices with adjustable thickness from 1–32 mm, suitable for premium meat processing.
Dual-Function Processing
Supports both precision slicing and portion cutting. An optional serrated blade enables processing of selected bone-in frozen products.
Intelligent Feeding System
Automatic feeding improves cutting consistency while reducing manual handling.
Wide Product Compatibility
Suitable for frozen meat, fish, cheese, bacon, sausages, cooked meat products, and other processed foods.
Direct-Drive Power System
The blade is directly connected to the gear motor, delivering stable power transmission, efficient cutting, and reduced maintenance.
Advanced Safety Protection
Safety interlocks stop blade operation immediately when the protective cover or discharge chute is opened.
Food-Grade SUS304 Construction
Manufactured from SUS304 stainless steel for hygienic processing, corrosion resistance, and easy sanitation.
Machine Advantages
High Cutting Precision
Produces uniform slices that improve packaging quality and product presentation.
Flexible Product Processing
Interchangeable blade configurations allow the machine to process a wide variety of food products.
Improved Productivity
The automatic feeding mechanism increases throughput while minimizing labor requirements.
Reliable Industrial Operation
Designed for continuous operation in demanding food production environments.
Suitable Materials
Meat Products
- Frozen Pork
- Frozen Beef
- Frozen Lamb
- Frozen Poultry
Processed Meat
- Bacon
- Sausages
- Ham
- Cooked Meat
Other Food Products
- Fish Fillets
- Frozen Fish
- Cheese
- Prepared Food Ingredients
Applications
Ideal for:
- Meat Processing Plants
- Frozen Food Manufacturers
- Central Kitchens
- Catering Supply Companies
- Hotels
- Schools
- Food Distribution Centers
- Prepared Food Production Facilities
- Serrated Blade for Bone-In Products
- Multiple Blade Thickness Options
- Customized Voltage
- Spare Blade Sets
- Automatic Discharge Conveyor
- Production Line Integration
Frozen Meat Slicing
Frozen Meat Blocks → KN-804D-17K Portion Slicing → Weighing → Packaging
Bacon Processing
Bacon Logs → KN-804D-17K Precision Slicing → Tray Packing
Fish Processing
Frozen Fish Fillets → KN-804D-17K → Portioning → Vacuum Packaging

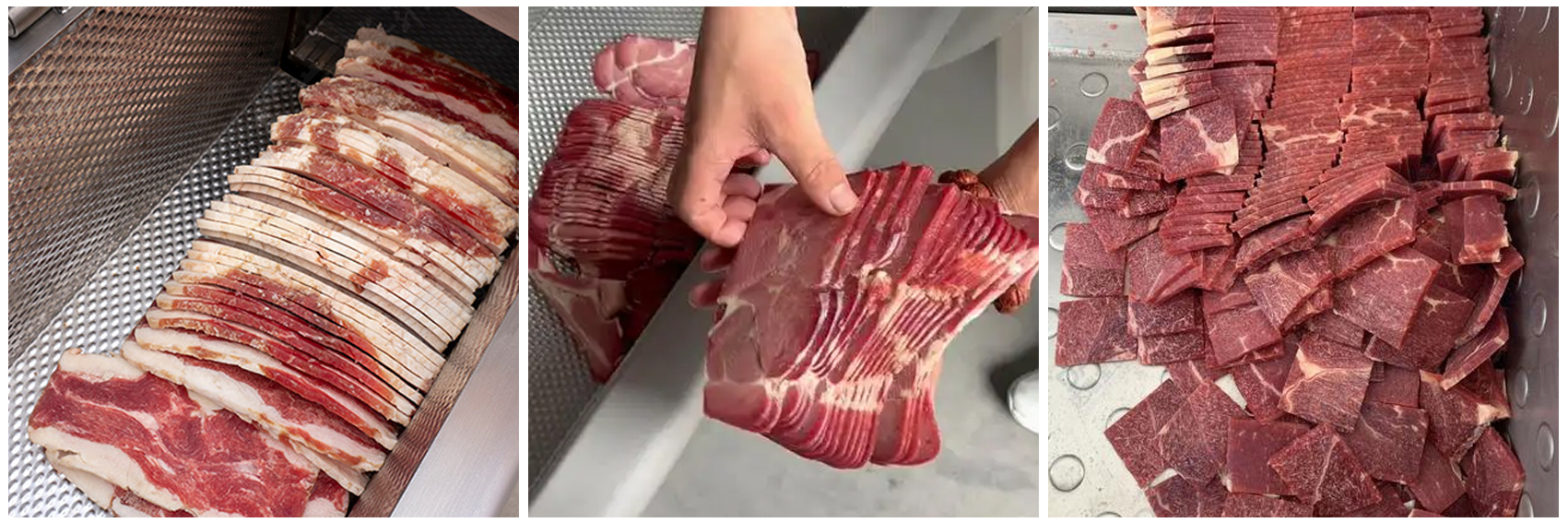

Processing Effect / Finished Cut Samples
Video
FAQ
1. What products can the KN-804D-17K process?
It is suitable for frozen meat, fish, cheese, bacon, sausages, ham, and other processed food products.
2. Is the cutting thickness adjustable?
Yes. The machine provides an adjustable cutting thickness from 1 mm to 32 mm.
3. Is it suitable for continuous production?
Yes. The intelligent feeding system and direct-drive transmission support stable industrial operation.
